Quick Details

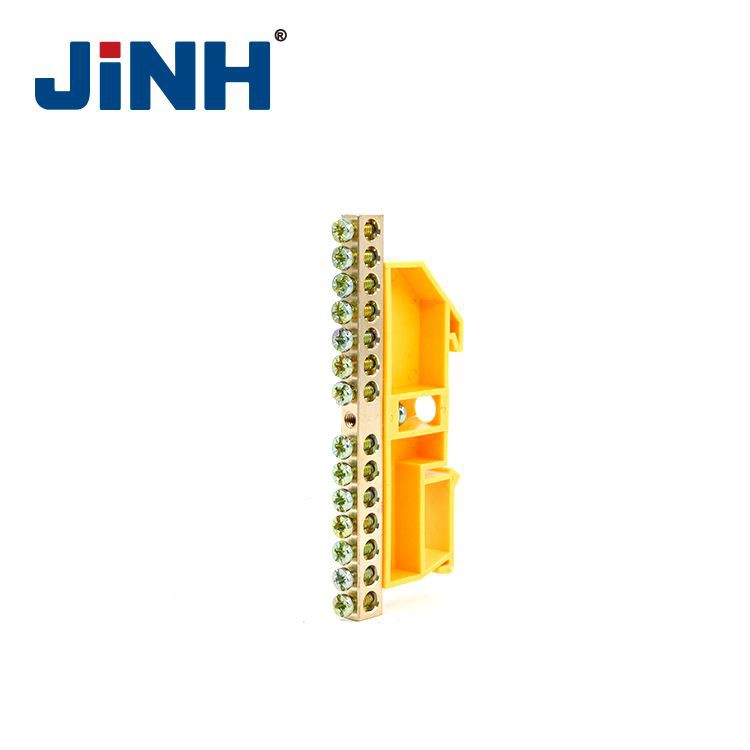

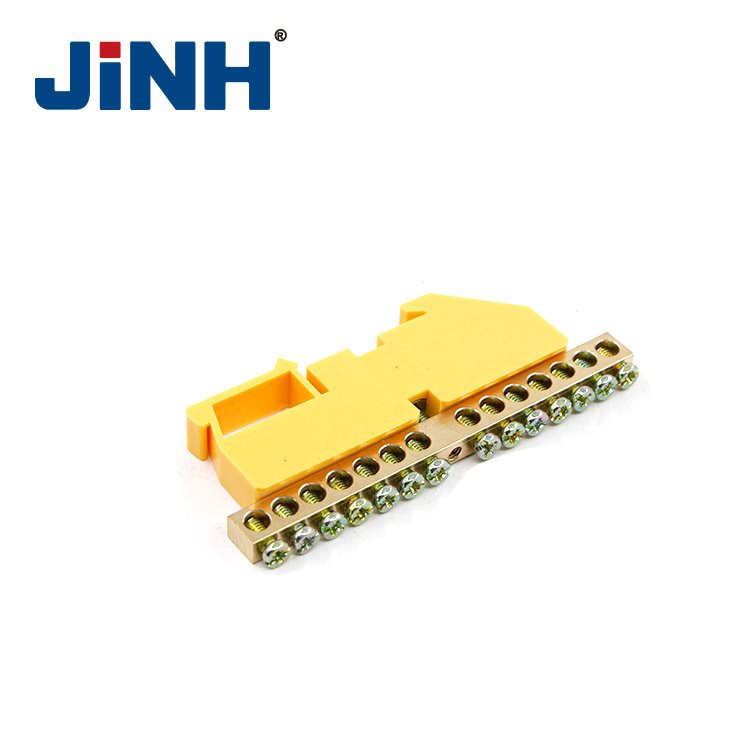

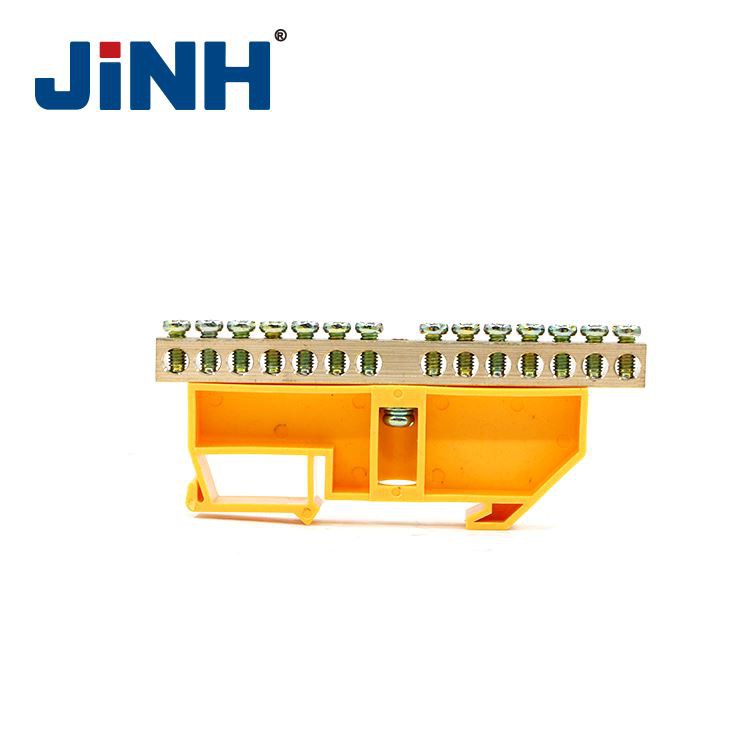

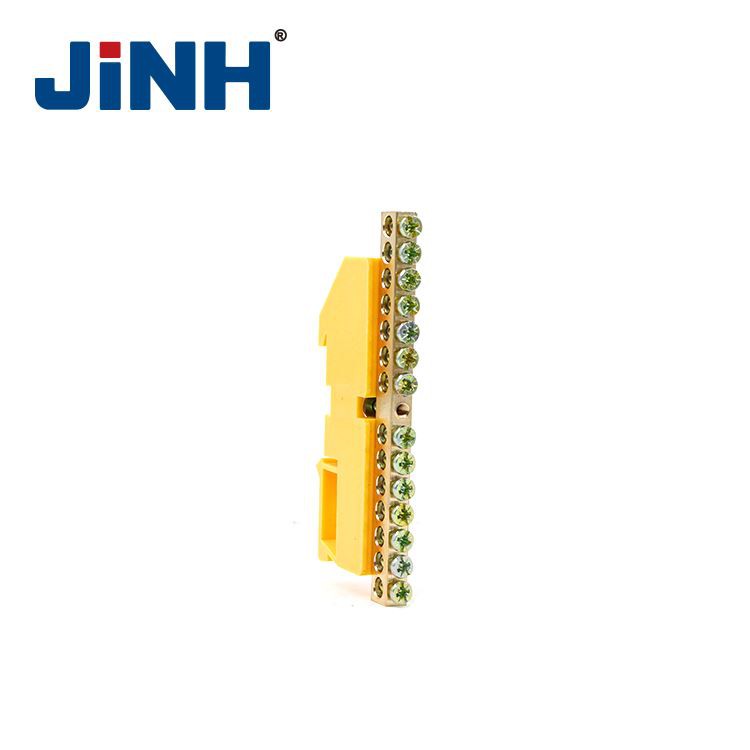

Name: Neutral Bars Links Brass Terminal
Model Number: JHS05 0609-6P
Type: Screw
Application: Wire Connecting
Conductor material: Brass
Holder material: PA
Color: Blue/ Yellow/ Customized

JHS05-0609 SERIES

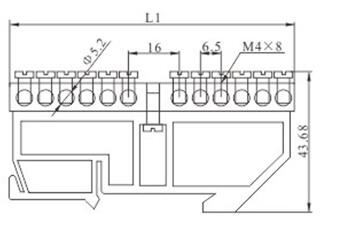

Product Structure	Way	Installation Dimension (L)	Dimension (L1)	Sectioncross of brass (MM²)
	4	35 X 7.5	88.5 X 12.1	6 X 9
	6	35 X 7.5	88.5 X 12.1	6 X 9
	8	35 X 7.5	88.5 X 12.1	6 X 9
	10	35 X 7.5	88.5 X 12.1	6 X 9
	12	35 X 7.5	90.5 X 12.1	6 X 9
	14	35 X 7.5	94 X 12.1	6 X 9
	16	35 X 7.5	106.4 X 12.1	6 X 9
JHS05-0812 SERIES
Product Structure	Way	Installation Dimension (L)	Dimension (L1)	Sectioncross of brass (MM²)
	4	35 X 7.5	88.5 X 12.1	8 X 12
	6	35 X 7.5	88.5 X 12.1	8 X 12
	8	35 X 7.5	88.5 X 12.1	8 X 12
	10	35 X 7.5	94.5 X 12.1	8 X 12
	12	35 X 7.5	111.5 X 12.1	8 X 12
	14	35 X 7.5	128.5 X 12.1	8 X 12
	16	35 X 7.5	145.5 X 12.1	8 X 12

FAQ

1.Q:Are you manufacturer or trade company?

A. We are manufacturer and specialized in terminal block for 25 years.

2. Q : Can you provide me samples ? Are the samples free ?

A: Yes,we can provide free samples if quantity not too much but delivery fee maybe need pay collect.

3. Q : What is your terms of payment?

A: T/T 30% for deposit, balance before shipping. We will show you the photos of the products and package before delivery.

4. Q: What kind of terminal block offered?

A: Fixed terminal block, terminal strip, screw terminal block,ceramic terminal block, Plastic terminal, Copper terminal block, spring terminal block, Din rail terminal block, End terminal blocks,electrical terminal block and so on..
