PRODUCT DETAILS
Quick Details

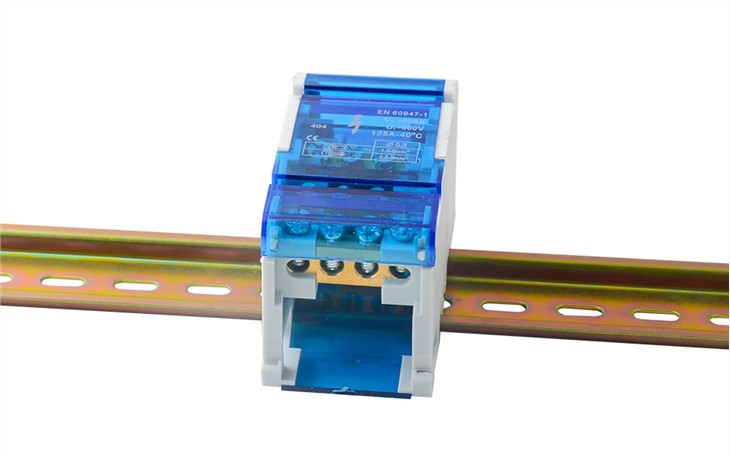

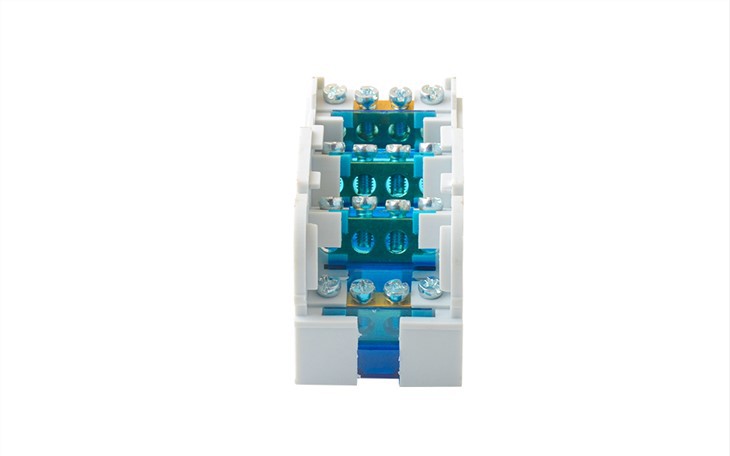

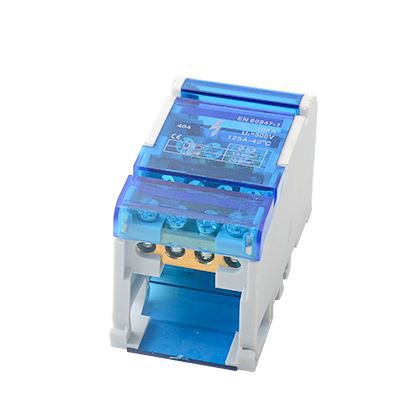

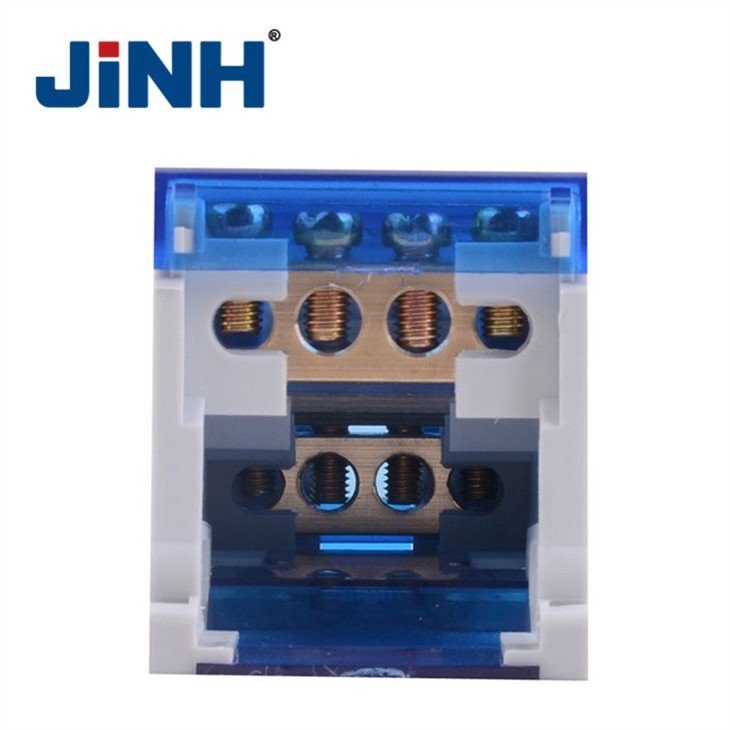

Model type: Connector Box series
Item: JH8404
Current: 125A
Description: Unipolar Junction Distribution Box
| Item No | Bus bar Spec. | No.Of | Conductors with starfix temules X-section(mm) | Cond woutferr | Dimensions |
JH8207 | 5*Ø5.5mm | 2 | 1.5 to 6 | 2.5 to 6 | 65*42*50 | |
JH8211 | 7*Ø5.5mm | 2 | 1.5 to 6 | 2.5 to 6 | 100*42*50 | |
JH8215 | 11*Ø5.5mm | 2 | 1.5 to 6 | 2.5 to 6 | 135*42*50 | |
JH8404 | 4*Ø5.5mm | 4 | 1.5 to 6 | 2.5 to 6 | 43*85*50 | |
JH8407 | 5*Ø5.5mm | 4 | 1.5 to 16 | 2.5 to 6 | 65*85*50 | |
JH8411 | 7*Ø5.5mm | 4 | 1.5 to 6 | 2.5 to 6 | 100*85*50 | |
JH8415 | 11*Ø5.5mm | 4 | 1.5 to 6 | 2.5 to 6 | 135*85*50 |
PRODUCT FEATURE
Connector with or without ferrules
Supplied with insulated back plate and transparent protective front cover. Self-extinguishing 960 mounting methods.
Fix on din-rail
On plate with 2 screws
When installing under a front plate, a blanking plate can be clipped onto the front plate insulation protection on each bar.
Each bar can be labelled using CAB 3TM
Conform to standard EN60947-1
ICC: 20KA PEAK
FAQ
1. Q: What is your after-sale service?
A: We have a professional after-sell service team, any of your enquire of question, please be free to contact us, we will reply you within 24 hours
2. Q: I would want to know can you accept small order?
A: Of course, we welcome any order, no long big or small.
3. Q: Do you have test report of your product?
A: Yes, we do have test report, we will send you if you ask for.
4.Q: Will you tell my information to other suppliers in our country?
A: dear, don't worry about that, we will protect the privacy of our customers.
