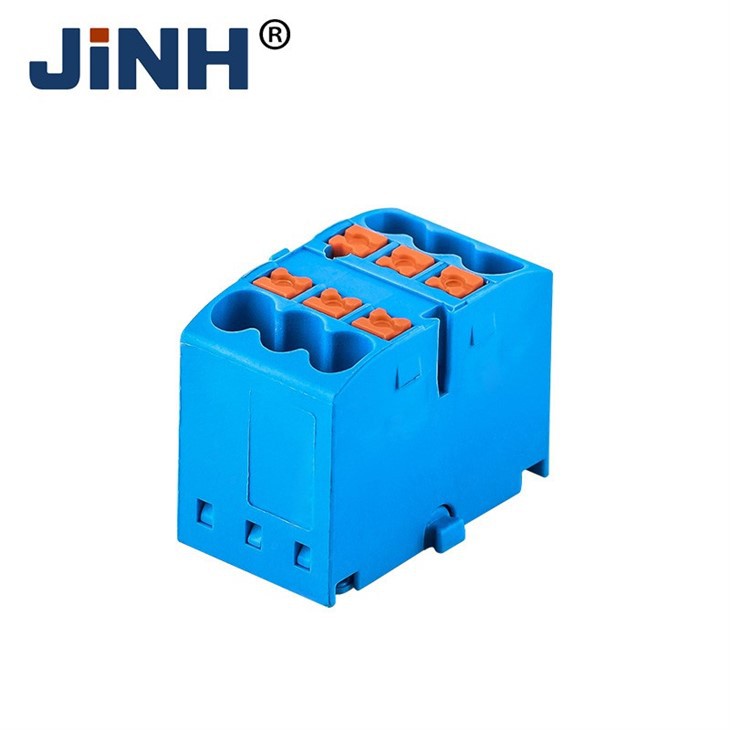

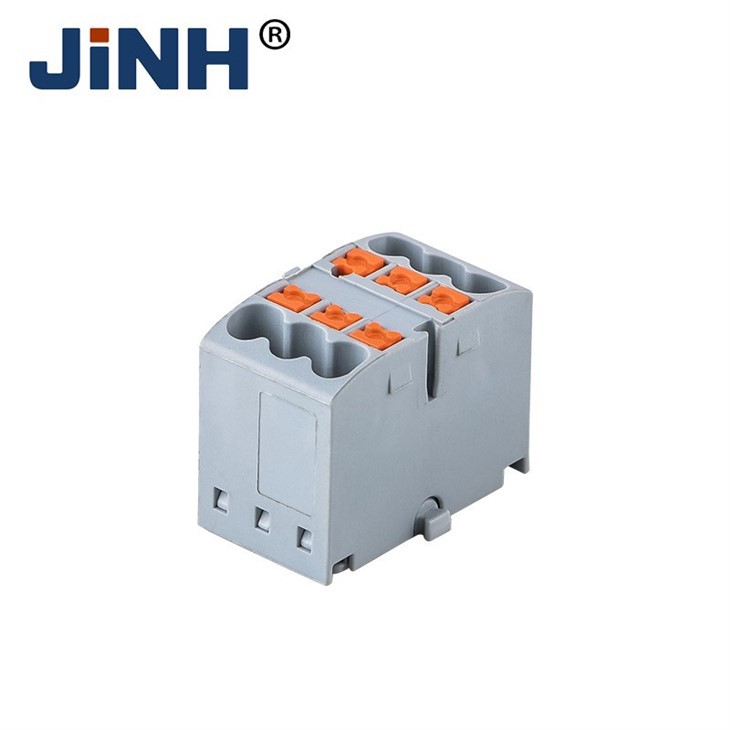

Name: JHPTX6-2.5 Din Rail Distribution Block
|
Model Number |
JHPTX6-2.5 |
| Hard Wire |
0.2-4mm² |
| Flexible Cable | 0.2-2.5mm² |
|
Current |
24A |
|
Voltage |
450V |
|
Mounting Type |
Din rail |
|
Dimension |
28.6*16*21.7mm |
Din Rail Distribution Blocks are essential components used in electrical systems to distribute power and organize wiring in a compact and efficient manner.
Definition: A Din Rail Distribution Block is a modular device mounted on a standard DIN rail, which is used to distribute electrical power from a single input to multiple outputs.
Usage: These blocks are commonly found in industrial control panels, automation systems, and other electrical installations where organized and efficient power distribution is required.
| Type | Current Input Port | Current Output Port | Voltage | PIN | Metal | Dimensions(mm) |
| JHPTX 6/6X2.5 | 41A | 24A | 690V | 6 | PA | 28.6*25.6*21.7 |
| JHPTX 6/12X2.5 | 41A | 24A | 690V | 12 | PA | 28.6*41*21.7 |
| JHPTX 6/18X2.5 | 41A | 24A | 690V | 18 | PA | 28.6*56.5*21.7 |
| Type | Current | Voltage | PIN | Metal | Dimensions(mm) |
| JHPTX 6X2.5 | 24A | 450V | 6 | PA | 28.6*16* 21.7 |
| JHPTX 12X2.5 | 24A | 450V | 12 | PA | 28.6*31.5*21.7 |
| JHPTX 18X2.5 | 24A | 450V | 18 | PA | 28.6*46.9*21.7 |
FAQ
Q : Why your company's price is competitive and quality seems rather good?
A： Because we have been manufacturing more than 20 years, we know what price and a quality buyer can sell well in the market. The wholesaler have suitable profits.
Q : What is your packing?
A:Our packing normally is 100pcs/bag and 6000pcs a carton.If you have requirement on the packing ,we can custom-made for you,just please let me know.
Q:What certificate do your products have?
A: Our products have passed ISO9001, TUV, CQC, ROHS, and CE.Some countries also have their specific requirements for certification, such as MIQ in Italy, so if you need special certification, you can also tell me, and we will evaluate whether we can apply for you.
