Basic info.

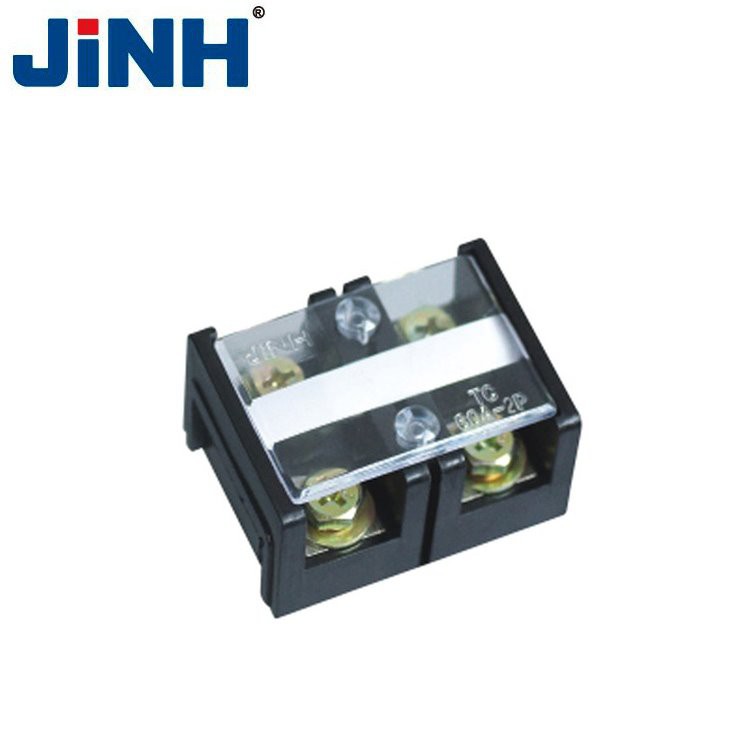

Description: TC 100A 2 pole fixed terminal block
Number of Contacts: 1-10
Conductor size: 5-10AWG
Brand: JINH
Color: Black
Plastic material: bakelite plate
Matel material: copper
Screw: Iron

Name	TC series Terminal block
Item Name	TC-1002
Wire Section	22mm
Rated Current	100A
Rated Voltage	600V
Size	6955.338.5mm

Introduction:
1. TC series terminal blocks are made of thermosetting plastics, and the safety factor of large current is more reliable. The structural parts are made of plate screw crimping technology.
2. The rated AC voltage is 600V.
3. The rated current of connecting conductive sheets is 60A, 100A, 150A, 200A, 300A, 400A, 600A.
4. The cross section of the connecting wire is 6-200mm2, which is the current largest intercepting flow terminal.
5. According to the arrangement, it is divided into 3P and 4P.
6. Flat screw mounting.

Product Features:
1. The outer casing is made of thermosetting plastics.
2. Copper conductor, good electrical conductivity, nickel-plated anti-corrosion.
3. Dust-proof and transparent plastic protective cover for durability.
