Wire Connecting Terminal Blocks

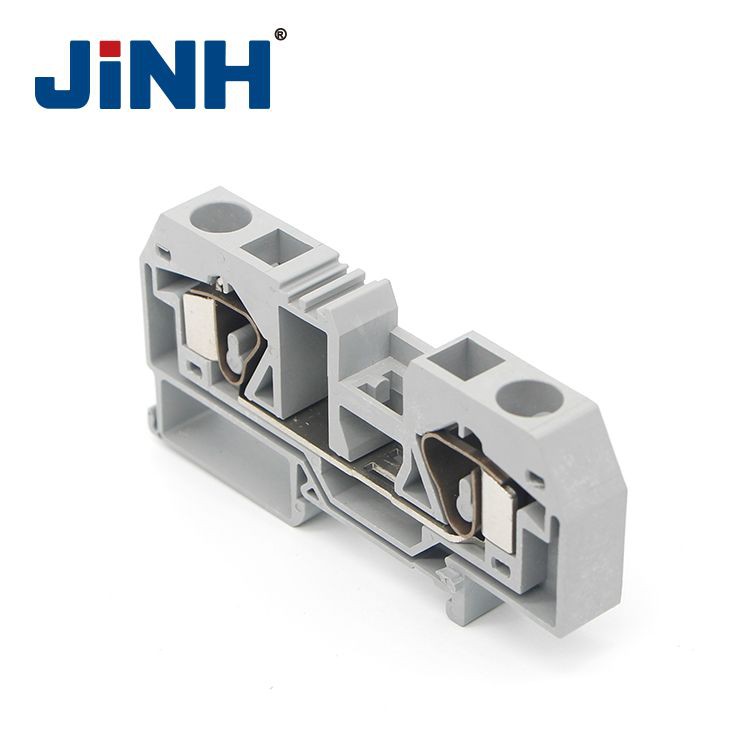

Item name: JHN1-4

Description: Grey 800V Wire Connecting Terminal Blocks

Type of connection: Spring cage connection

Cross section: 0.08 mm - 2.5 mm2, AWG 26 - 12,

Color: gray, Mounting type: TH35/7.5

General

Number of levels: 1

Number of connections: 2

Color: gray

Inslating material: PA

Inflammability class acc. to UL 94: V0

Technical data

Connection in acc. with standard: IEC 60947-7-1

Nominal current: 20 A

Nominal voltage: 800 V

Connection data

Type of connection: Spring-cage connection

Other types: JHN1-1.5, JHN1-2.5, JHN1-4, JHN1-6, JHN1-10, JHN1-16

EXPLAIN CONNECTION

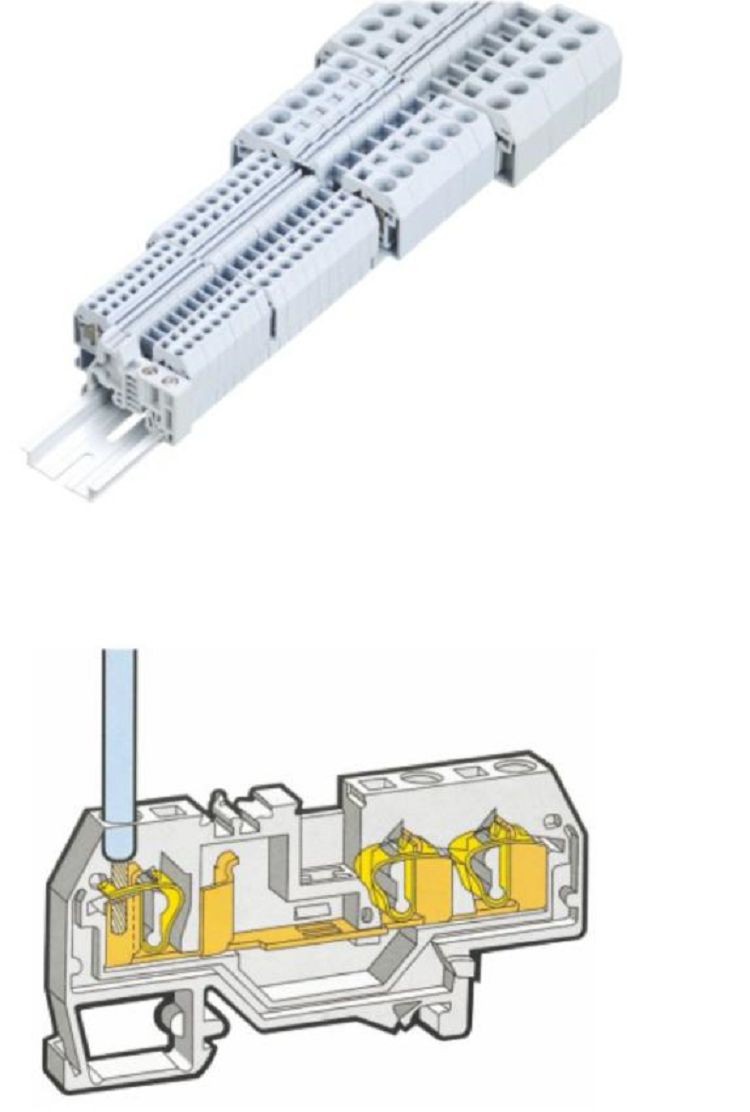

1.Open the spring with a screwdriver: insert the screwdriver along with the inner sidewall of square hole to open the spring (you can observe from the round hole). then insert the screwdriver to the bottom, thus the spring is fully opened while the screwdriver is remained in the square hole.

2.Stripping length of the conductor should be made according to the operating manual.

3.When leading wire into the round hole, if it is stranded wire,please make sure that it hasn’t been branched off. The stranded wire should be led into the hole wholly.

4.Insulation sheath of the conductor should be led into the round hole of terminal, for example, for a conductor of 2.5mm² or 4mm², their insulation sheath should be led in for 2-3mm². For thicker conductors, the insulation sheath should be led inside.

5.While withdrawing the screwdriver, the conductor has been finished wiring. Draw the conductor gently, if it cannot be drawn out, it means it have been well wired.

6.Make a final examination, you can press and bend the conductor at the connection hole, and it is in good examination, you can press and bend the conductor at the connection hole, and it is in good condition if yo cannot find the copper wire.
