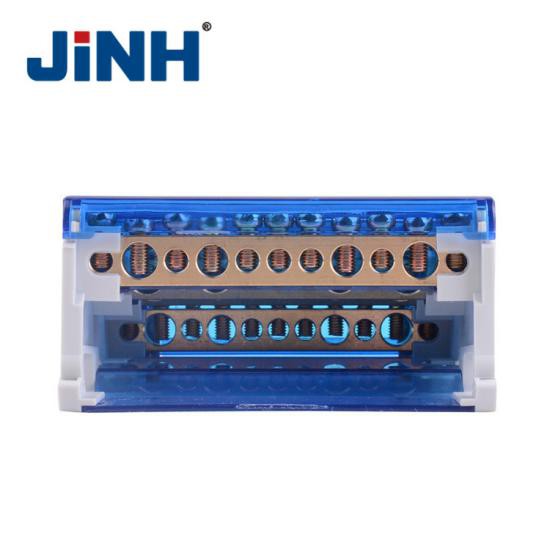

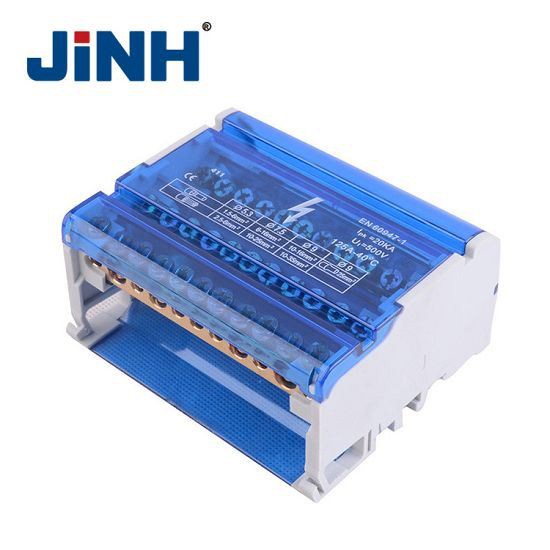

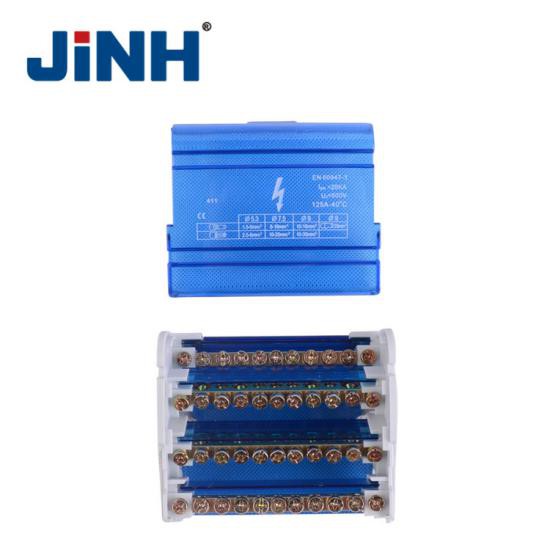

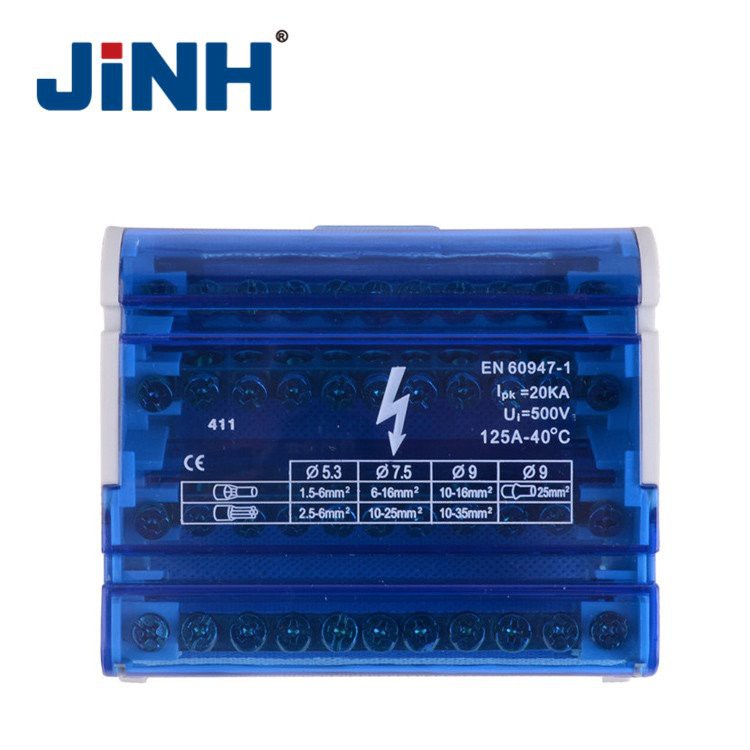

Model Number: Connector Box series
Type: Screw
Item: JH8411
Color: Blue
Rated insulation voltage: 500V
PRODUCT DETAILS
Quick Details
Model Number: Connector Box series
Type: Screw
Item: JH8411
Color: Blue
Rated insulation voltage: 500V
Cover material: PC
Terminal material: brass
Side material: PA66
| Item No | Bus bar Spec. | No.Of | Conductors with starfix temules X-section (mm) | Cond woutferr | Dimensions |
JH8207 | 5*Ø5.5mm | 2 | 1.5 to 6 | 2.5 to 6 | 65*42*50 | |
JH8211 | 7*Ø5.5mm | 2 | 1.5 to 6 | 2.5 to 6 | 100*42*50 | |
JH8215 | 11*Ø5.5mm | 2 | 1.5 to 6 | 2.5 to 6 | 135*42*50 | |
JH8404 | 4*Ø5.5mm | 4 | 1.5 to 6 | 2.5 to 6 | 43*85*50 | |
JH8407 | 5*Ø5.5mm | 4 | 1.5 to 16 | 2.5 to 6 | 65*85*50 | |
JH8411 | 7*Ø5.5mm | 4 | 1.5 to 6 | 2.5 to 6 | 100*85*50 | |
JH8415 | 11*Ø5.5mm | 4 | 1.5 to 6 | 2.5 to 6 | 135*85*50 |
AFTER SELL SERVEICES
If you have any questions, please be free to contact us, we will reply you within 24 hours.
Our office working time: from each Monday to Saturday.
8AM to 5PM BEIJING time, excluding public holidays.
FAQ
1. Q: Is this product can be used on the din rail?
A: Yes, it can be used on the din rail.
2. Q: what is material of this product?
A: Copper.
3. Q: what is current of this product?
A: The current of JH8 series is 125A.
4.Q: May I print our logo or our type on the plastic?
A: Yes, we could do it, but need MOQ.
