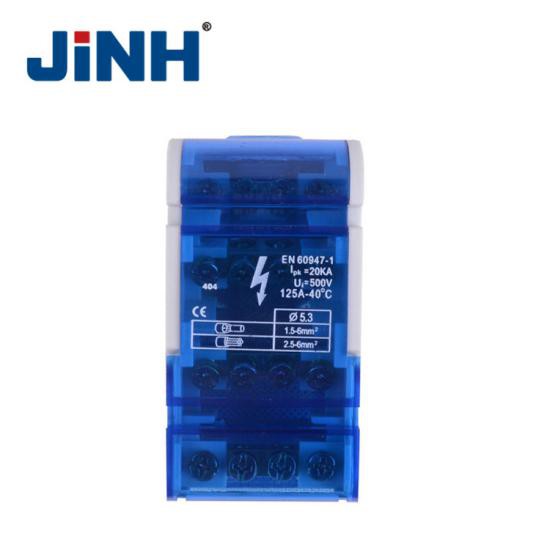

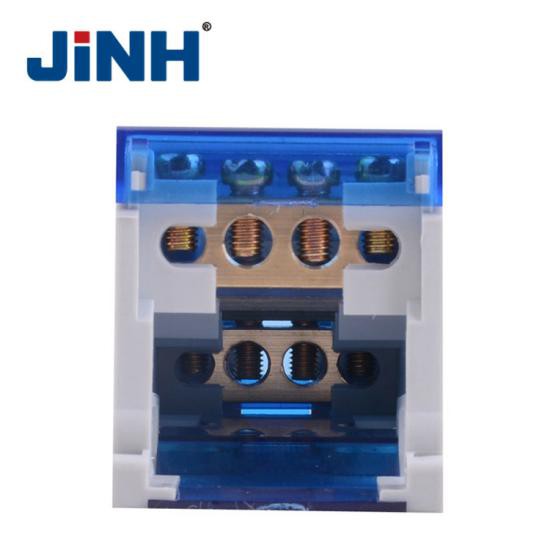

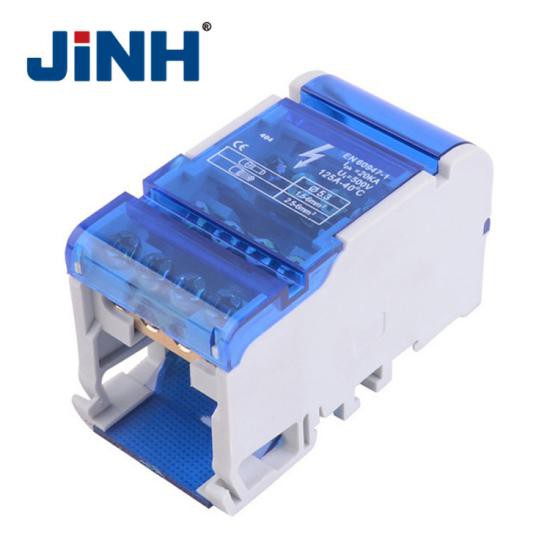

Unipolar Junction Distribution Box

Unipolar Junction Distribution Box

Model type: Connector Box series
Item: JH8404
Current: 125A
Description: Unipolar Junction Distribution Box

Send Inquiry
Product Details

PRODUCT DETAILS
Quick Details
Model type: Connector Box series
Item: JH8404
Current: 125A
Description: Unipolar Junction Distribution Box







28

Item No

Bus bar Spec.

No.Of
Bus bar

Conductors with starfix temules X-section(mm)

Cond woutferr
X-section(mm)

Dimensions
     (L*W*H)

JH8207

5*Ø5.5mm
2*Ø7.5mm

2

1.5 to 6
6 to 16

2.5 to 6
10 to 25

65*42*50

JH8211

7*Ø5.5mm
2*Ø7.5mm
2*Ø9mm

2

1.5 to 6
6 to 16
10 to 16

2.5 to 6
10 to 25
10 to 35

100*42*50

JH8215

11*Ø5.5mm
 2*Ø7.5mm
2*Ø9mm

2

1.5 to 6
6 to 16
10 to 16

2.5 to 6
10 to 25
10 to 35

135*42*50

JH8404

4*Ø5.5mm

4

1.5 to 6

2.5 to 6

43*85*50

JH8407

5*Ø5.5mm
2*Ø7.5mm

4

1.5 to 16
6 to 16

2.5 to 6
10 to 25

65*85*50

JH8411

7*Ø5.5mm
2*Ø7.5mm
 2*Ø9mm

4

1.5 to 6
6 to 16
10 to 16

2.5 to 6
10 to 25
10 to 35

100*85*50

JH8415

11*Ø5.5mm
2*Ø7.5mm
2*Ø9mm

4

1.5 to 6
6 to 16
10 to 16

2.5 to 6
10 to 25
10 to 35

135*85*50

33


34

35

36

PRODUCT FEATURE

Connector with or without ferrules

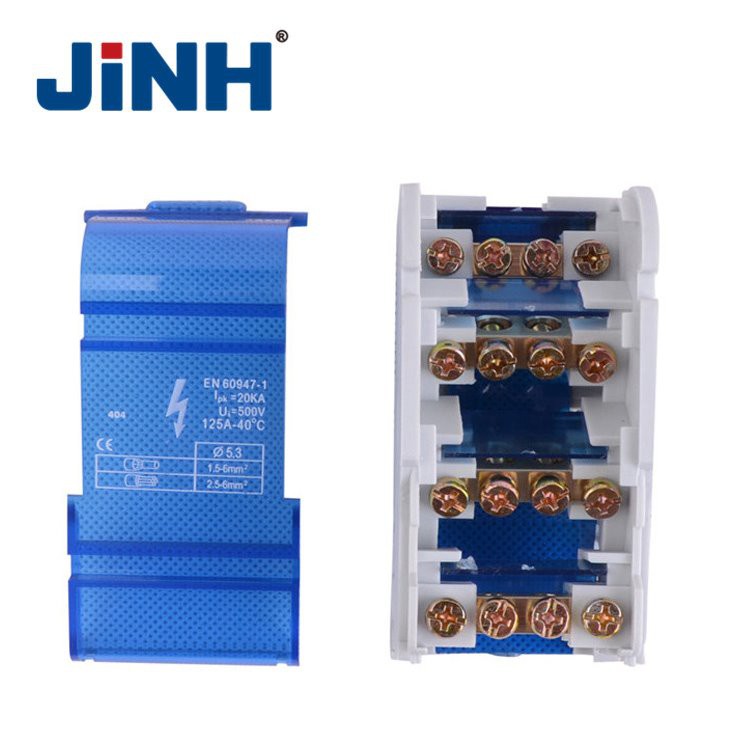

Supplied with insulated back plate and transparent protective front cover. Self-extinguishing 960 mounting methods.

Fix on din-rail

On plate with 2 screws


When installing under a front plate, a blanking plate can be clipped onto the front plate insulation protection on each bar.

Each bar can be labelled using CAB 3TM

Conform to standard EN60947-1

ICC: 20KA PEAK


12(001)(001)(001)

19(001)

FAQ

1. Q: What is your after-sale service?

A: We have a professional after-sell service team, any of your enquire of question, please be free to contact us, we will reply you within 24 hours

2. Q: I would want to know can you accept small order?

A: Of course, we welcome any order, no long big or small.

3. Q: Do you have test report of your product?

A:  Yes, we do have test report, we will send you if you ask for.

4.Q: Will you tell my information to other suppliers in our country?

A:  dear, don't worry about that, we will protect the privacy of our customers.
