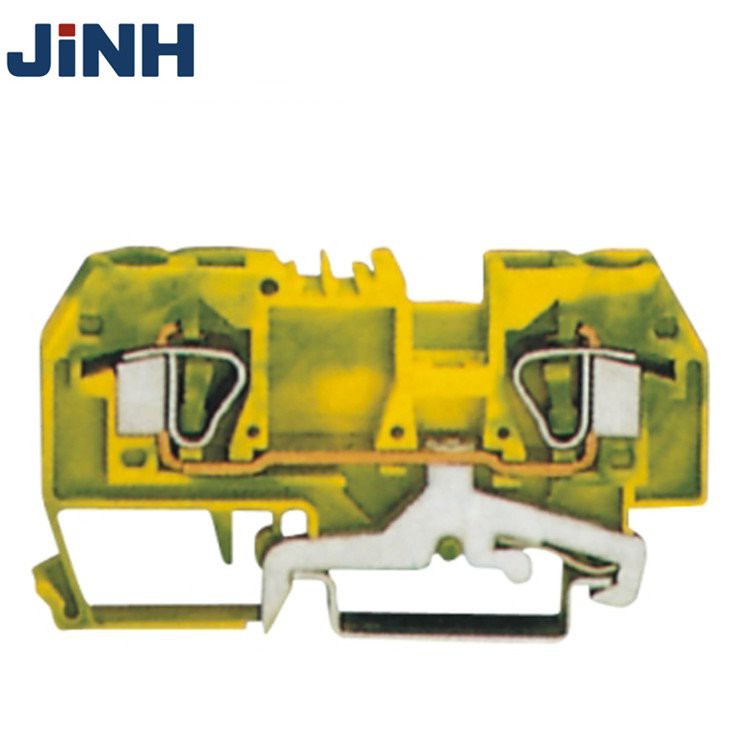

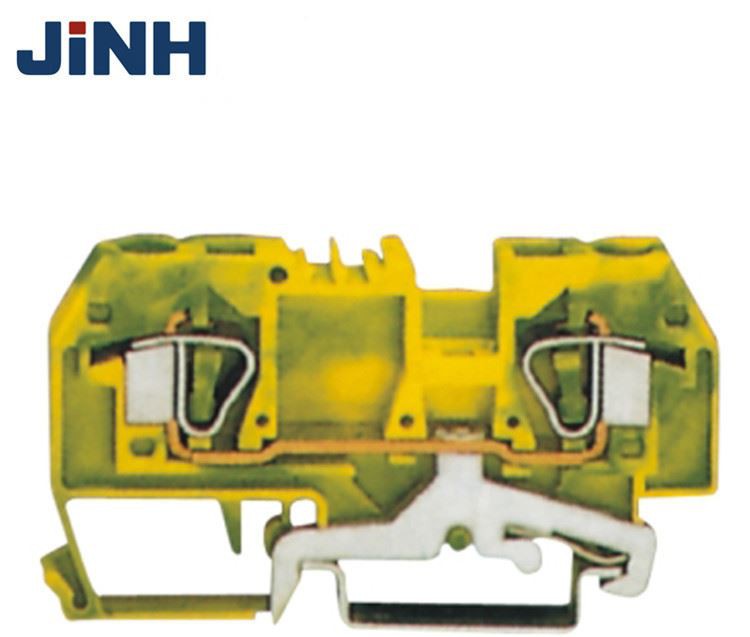

2lines Connecting Ground Spring Terminal

Product details

Jhn1 screwless terminal block

Item name: JHN1-1.5PE

Description: 2lines connecting ground spring terminal block

Type of connection: Spring cage connection

Cross section: 0.08 mm - 2.5 mm2, AWG 26 - 12,

Color: type Kelly

Explain connection

1. Open the spring with a screwdriver: insert the screwdriver along with the inner sidewall of square hole to open the spring (you can observe from the round hole). then insert the screwdriver to the bottom, thus the spring is fully opened while the screwdriver is remained in the square hole.

2. Stripping length of the conductor should be made according to the operating manual.

3. When leading wire into the round hole, if it is stranded wire,please make sure that it hasn’t been branched off. The stranded wire should be led into the hole wholly.

4. Insulation sheath of the conductor should be led into the round hole of terminal, for example, for a conductor of 2.5mm² or 4mm², their insulation sheath should be led in for 2-3mm². For thicker conductors, the insulation sheath should be led inside.

5. While withdrawing the screwdriver, the conductor has been finished wiring. Draw the conductor gently, if it cannot be drawn out, it means it have been well wired.

6. Make a final examination, you can press and bend the conductor at the connection hole, and it is in good examination, you can press and bend the conductor at the connection hole, and it is in good condition if yo cannot find the copper wire.

FAQ

1. Q: Do you have a guarantee of your product quality?

A: We have a guarantee of 3 years.

2. Q :What kind of payment do you accept ? Can I pay RMB ?

A: L/C and TT all are acceptable. If by TT should 30% T/T as deposit and 70% balance against copy of B/L.And you also can pay money in RMB.

3. Q : Is your price is high or cheap?

A: To be honest, our price is not the highest and not the cheapest, but compare to quality, our price is reasonable.

4. Q: How to ship my order ? Is it safe?

A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.That’s a Door to Door service. For big packages, we will send them by air or sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.
